Turning device TWV

Turning beam

With BETA devices and beams, the turning and pivoting of heavy or bulky loads becomes child's play. Your components are carefully fixed in place and securely moved into the correct position. In doing so, high turning speeds and turning angles of 360° are possible.

Thanks to the adjustable gripping width, turning beams with lifting straps or chains can be used universally.

The loads can be turned manually or with an electric motor. On the crane side, eyes for one or two crane operation, chains or bar suspension for double hooks can be implemented. Our standard is sufficient for load bearing capacities from 1.0 to 20.0 t and with grip widths of 1.0 to 6.0 m.Please enquire about custom solutions!

Enquiry

Send us your product enquiry! We will create an individual offer with the best of terms.

Show enquiry

Downloads

Flyer Turning device

Produktfolder-2019-Turning-device-EN.pdf [698,6 kB]

Brochure Turning device

Turning-device.pdf [805 kB]

Turning device TWV enquiry

Send us your details for a product enquiry! We will create an individual offer with the best of terms. If further details need to be clarified to create the proposal, we will get in touch with you.

Model/product
Crane-side accessories
Load-side accessories
Accessoires
Your details
Contact
Adress
* Required fields

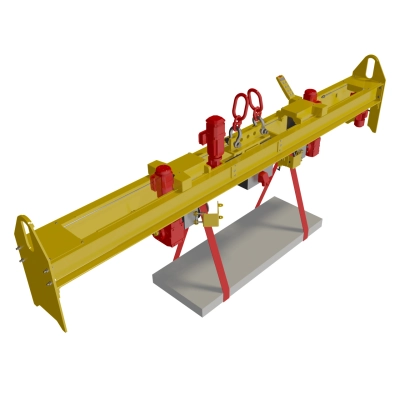

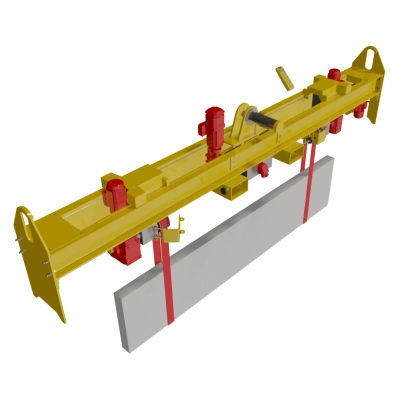

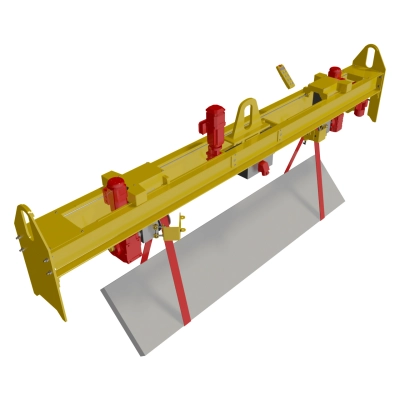

Adjustable turning device TWV

Turning beam
Detail
*1 = abhängig von Gurtlänge
Type Load bearing capacity (kg) Amin (mm) Amax (mm) B (mm) C (mm) D (mm) E (mm) Weigth (kg)
TWV 5,0 / 3000 5000 1000 3000 *1 180 40 100 620
TWV 5,0 / 4500 5000 1500 4500 *1 110 25 60 800
TWV 5,0 / 6000 5000 1500 6000 *1 110 25 60 1000
TWV 10,0 / 3000 10000 1000 3000 *1 260 70 130 950
TWV 10,0 / 4500 10000 1500 4500 *1 260 70 130 1300
TWV 10,0 / 6000 10000 1500 6000 *1 260 70 130 1600
TWV 15,0 / 3000 15000 1500 3000 *1 260 85 140 1200
TWV 15,0 / 4500 15000 1500 4500 *1 260 85 140 1500
TWV 15,0 / 6000 15000 1500 6000 *1 260 85 140 1950
TWV 20,0 / 3000 20000 1500 3000 *1 260 90 160 1400
TWV 20,0 / 4500 20000 1500 4500 *1 260 90 160 1800
TWV 20,0 / 6000 20000 1500 6000 *1 260 90 160 2150
TWV 30,0 / 3000 30000 1500 3000 *1 400 160 250 1965
TWV 30,0 / 4500 30000 1500 4500 *1 400 160 250 2540
TWV 30,0 / 6000 30000 1500 6000 *1 400 160 250 3025

Accessories

Crane-side accessories

Bar suspension
Bar suspension
Pin suspension
Pin suspension
Double suspension
Double suspension
Double suspension
Double suspension
Chain attachment
Chain attachment
Stacker mount
Stacker mount

Load-side accessories

Simple hook
Simple hook
Swivel hook
Swivel hook
Shackle
Shackle
Centre hook
Centre hook
Long hook
Long hook
Chain slings
Chain slings
Adjusting chain
Adjusting chain
Lifting straps
Lifting straps
Cow horns
Cow horns
Adjustable cow horns
Adjustable cow horns
Load lifting magnet
Load lifting magnet
Vacuum suspension
Vacuum suspension

Accessories

Set-down trestle
Set-down trestle
Stainless steel
Stainless steel
Galvanised
Galvanised
Optimised height
Optimised height

Safety and operation

Bedienungsanleitung-Traversen-allgemein.pdf

Bedienungsanleitung-Traversen-allgemein.pdf [158,4 kB]

Photos & videos
