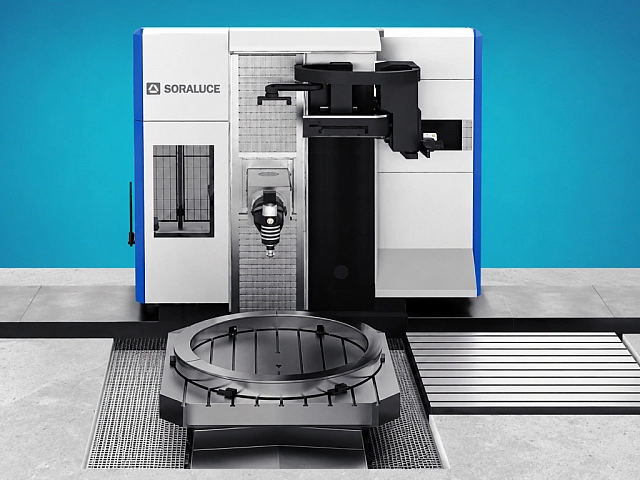

Contract machining of large components

Clamping surfaces

• Table area 6000 x 2500 mm
• Rotary table 2500 x 2500 mm (30 t)
• Rotary table extension to 3300 – 5000 mm
• Milling of rings up to 5 m in diameter

Travel ranges

• Longitudinal (X-axis) 6000 mm
• Transverse (Y-axis) 1,600 mm
• Vertical (Z-axis) 2,200 mm
• Rotary table (W-axis, parallel to Y-axis) 1,000 mm

Performance

• Components up to 30 t
• Spindle motor 49 kW, 1,045 Nm
• Milling head increment 0.001°
• Programming 3D InventorCAM
