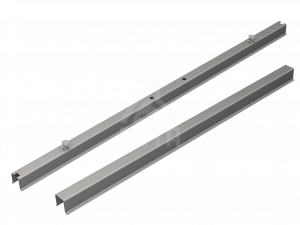

Circulation formwork BUS-M / BUS
BUS-M / BUS formwork system for dual wall and ceiling element production
The robot-compatible system is available with integrated magnets (BUS-M) and without integrated magnets (BUS). Various versions and cross-sections are available as transverse and longitudinal stopper variants.
Our formwork and magnets have a high manufacturing quality and guarantee many years of reliability. With your specifications for geometry, quantities and manufacturing conditions in the concrete plant, we would be delighted to generate a proposal for you.
-
Formworks / Magnets
Enquiry
Send us your product enquiry! We will create an individual offer with the best of terms.
Downloads
Product enquiry
Send us your details for a product enquiry! We will create an individual offer with the best of terms. If further details need to be clarified to create the proposal, we will get in touch with you.
Circulation formwork BUS-M
| Type | Heigth H(mm) | Width B(mm) | Chamfer | Length L(mm) |
|---|---|---|---|---|
| BUS-M 70/60/Length (0) | 70 | 60 | 0 | Per specification |
| BUS-M 70/60/Length (1) | 70 | 60 | 1 | Per specification |
| BUS-M 70/60/Length (2) | 70 | 60 | 2 | Per specification |
Circulation formwork BUS
| Type | Heigth H(mm) | Width B(mm) | Chamfer | Length L(mm) |
|---|---|---|---|---|
| BUS 70/60/Length (0) | 70 | 60 | 0 | Per specification |
| BUS 70/60/Length (1) | 70 | 60 | 1 | Per specification |
| BUS 70/60/Length (2) | 70 | 60 | 2 | Per specification |
Versions
Accessories
Photos & videos
Products in the online shop
Circulation formwork BUS-M
For ceiling elements and double walls, length: 480 - 4,000 mm, width: 60-70 mm, height: 60-100 mm, integrated magnets
Circulation formwork BUS
For ceiling elements and double walls, length: 480 - 4,000 mm, width: 60-70 mm, height: 60-100 mm, without magnets
