Carousel Magnet BUM

Umlauf Magnet BUM

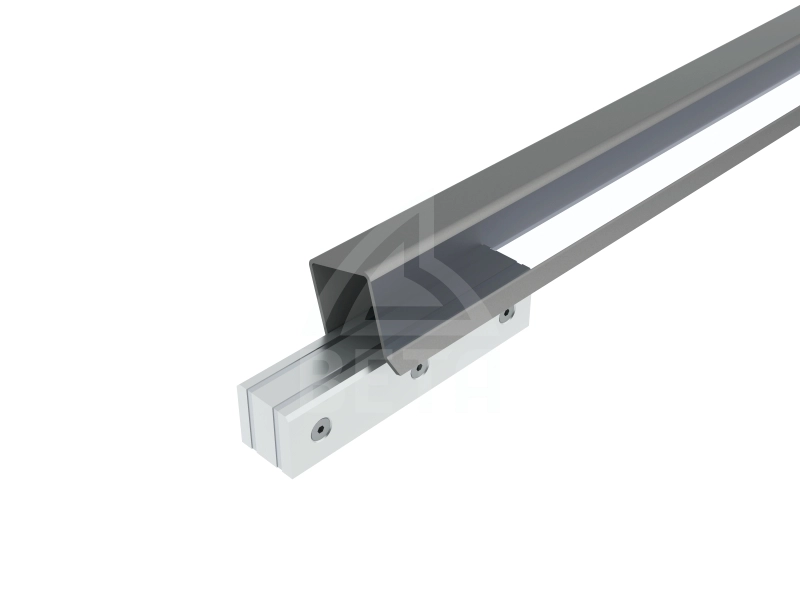

Holding magnet for integration into U-profile longitudinal and transverse stoppers.

The robot-compatible BUM magnet with holding forces up to 11000N for fastening your longitudinal and transverse stoppers.

Our formwork and magnets have a high manufacturing quality and guarantee many years of reliability. With your specifications for quantities and the manufacturing conditions in the concrete plant, we would be delighted to generate a proposal for you.

We will develop the optimum solution for you, automated for a high level of convenience or designed for products that are changed frequently and produced in low volumes.

Enquiry

Send us your product enquiry! We will create an individual offer with the best of terms.

Show enquiry

Downloads

Product flyer

Flyer-EN-BETA-Magnets-BCM-BPM-BUM-BKM-BKA-BGH.pdf [4,1 MB]

Product enquiry

Send us your details for a product enquiry! We will create an individual offer with the best of terms. If further details need to be clarified to create the proposal, we will get in touch with you.

Model/product
Miscellaneous
Your details
Contact
Adress
* Required fields

Carousel formwork BUS

Carousel formwork BUS
Carousel formwork BUS
Type Holding force(N) Length L(mm) Width B(mm) Heigth H(mm) Weigth(kg)
BUM S 3000 140 50 50 2,4
BUM M 5000 230 50 50 3,9
BUM L 7000 140 50 50 2,6
BUM XL 9000 230 50 50 4,1
BUM XXL 11000 230 50 50 4,2

Accessories

Magnet BUM with nonmagnetic head piece
Magnet BUM with nonmagnetic head piece
Magnet BUM release tool
Magnet BUM release tool
Carousel formwork BUS
Carousel formwork BUS

Products in the online shop

5 Variants

Carousel magnet BUM

Length: 140-230 mm, Width: 50 mm, Height: 50 mm, Force: 4,000-11,000 N

more

from45,00 €
excl. 19% VAT + Shipping
Delivery time: ca. 2 Weeks
5 Variants

Carousel magnet BUM with nose

Length: 140-230 mm, Width: 50 mm, Height: 50 mm, Force: 4,000-11,000 N

more

from48,00 €
excl. 19% VAT + Shipping
Delivery time: ca. 2 Weeks
5 Variants

Carousel magnet BUM with head piece

Length: 140-230 mm, Width: 50 mm, Height: 50 mm, Force: 4,000-11,000 N

more

from51,00 €
excl. 19% VAT + Shipping
Delivery time: ca. 2 Weeks

Detachment lever for magnets BUM

To release the carousel magnets BUM from the table or pallet

more

42,00 €
excl. 19% VAT + Shipping
Delivery time: ca. 2 Weeks
