C-hook

C-hooks are ideally suited to the secure transportation of coils, rolls, rings, bushings etc.

The C-hooks are tailor made to your requirements and can be supplied with almost any load bearing capacity and dimensions. Our standard products are available from 500 - 10,000 kg.

Coils, rolls, rings, bushing and similar can be transported efficiently and safely with C-hooks. Tine lengths and usable height for the counterweight type shown take the most common coil sizes into account with the various of payload ratings.

Enquiry

Send us your product enquiry! We will create an individual offer with the best of terms.

Show enquiry

Downloads

Flyer C-hooks

Produktfolder-2019-Gripper-C-Hook-EN.pdf [521,7 kB]

Product enquiry

Send us your details for a product enquiry! We will create an individual offer with the best of terms. If further details need to be clarified to create the proposal, we will get in touch with you.

Model/product
Miscellaneous
Your details
Contact
Adress
* Required fields

Standard models

C-hook

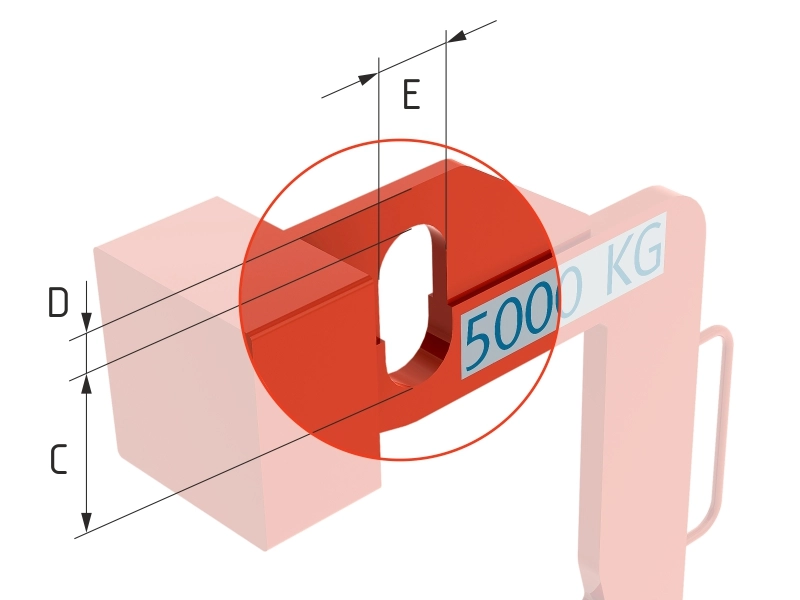

Detail
Type Load bearing capacity (kg) A (mm) B1 (mm) B2 (mm) C (mm) D (mm) E (mm) Weigth (kg)
CH 0,5 / 300 500 300 400 595 120 25 60 21
CH 0,5 / 500 500 500 400 603 120 23 60 30
CH 0,5 / 800 500 800 400 603 120 23 60 46
CH 1,0 / 300 1000 300 450 643 120 25 60 28
CH 1,0 / 500 1000 500 450 653 120 23 60 40
CH 1,0 / 800 1000 800 450 653 120 23 60 95
CH 2,0 / 300 2000 300 500 738 150 38 75 45
CH 2,0 / 500 2000 500 500 738 150 38 75 90
CH 2,0 / 800 2000 800 500 758 150 38 75 140
CH 2,0 / 1000 2000 1000 500 755 150 35 75 180
CH 3,0 / 300 3000 300 500 738 150 38 75 68
CH 3,0 / 500 3000 500 500 740 150 40 75 127
CH 3,0 / 800 3000 800 500 760 150 40 75 165
CH 3,0 / 1000 3000 1000 500 760 150 40 75 215
CH 5,0 / 500 5000 500 550 845 200 45 100 184
CH 5,0 / 800 5000 800 550 845 200 45 100 238
CH 5,0 / 1000 5000 1000 550 865 200 45 100 286
CH 5,0 / 1250 5000 1250 550 865 200 45 100 364
CH 7,5 / 800 7500 800 600 950 220 50 110 390
CH 7,5 / 1000 7500 1000 600 950 220 50 110 520
CH 7,5 / 1250 7500 1250 600 945 220 45 110 650
CH 7,5 / 1500 7500 1500 600 970 200 50 110 767
CH 10,0 / 1000 10000 1000 650 1030 250 50 130 772
CH 10,0 / 1250 10000 1250 650 1055 250 55 130 810
CH 10,0 / 1500 10000 1500 650 1055 250 55 130 980

Accessories

  • Centre of gravity compensation
  • Load-bearing surfaces with rubber or plastic coating
  • Set-down trestle
