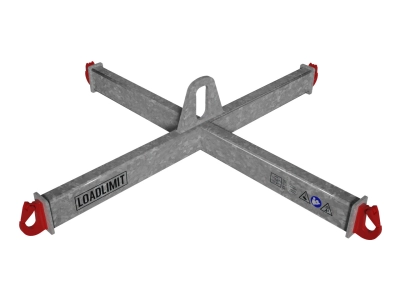

Big-Bag lifting beams TBB

Big-Bag beam

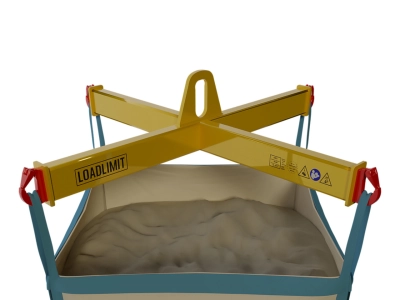

The lifting and transporting of Big-Bags by crane is very effective and safe compared to operations with industrial trucks.

We can supply the Big-Bag beams required for this as standard for all common sizes and load bearing capacities. If desired we can design and manufacture the appropriate load bearing equipment in accordance with your needs.

The load bearing capacity in standard form is 1.0 t and 2.0 t with a grip width from 750 to 800 mm or 900 to 970 mm. The load suspension is implemented via welded-on hooks.

Enquiry

Send us your product enquiry! We will create an individual offer with the best of terms.

Show enquiry

Downloads

Flyer Big-Bag lifting beams

Produktfolder-2019-Bigbag-Pallet-cage-Stacker-lifting-beams-EN.pdf [692 kB]

Brochure Big-Bag lifting beams

Big-Bag-beams.pdf [535,7 kB]

Big-Bag beams TBB enquiry

Send us your details for a product enquiry! We will create an individual offer with the best of terms. If further details need to be clarified to create the proposal, we will get in touch with you.

Model/product
Crane-side accessories
Load-side accessories
Accessoires
Your details
Contact
Adress
* Required fields

Big-Bag beams TBB

Big-Bag beam
Detail
Type Load bearing capacity (kg) A1 (mm) A2 (mm) B (mm) C (mm) D (mm) E (mm) Weigth (kg)
TBB 1,0 / 1090 - 1090 1000 750 - 800 1090 210 110 25 60 27
TBB 1,0 / 1320 - 1320 1000 900 - 970 1320 210 110 25 60 33
TBB 2,0 / 1090 - 1090 2000 750 - 800 1090 240 135 28 75 42
TBB 2,0 / 1320 - 1320 2000 900 - 970 1320 240 135 28 75 44

Accessories

Crane-side accessories

Bar suspension
Bar suspension
Pin suspension
Pin suspension
Double suspension
Double suspension
Double suspension
Double suspension
Chain attachment
Chain attachment
Stacker mount
Stacker mount

Load-side accessories

Simple hook
Simple hook
Swivel hook
Swivel hook
Shackle
Shackle
Centre hook
Centre hook
Long hook
Long hook
Chain slings
Chain slings
Adjusting chain
Adjusting chain
Lifting straps
Lifting straps
Cow horns
Cow horns
Adjustable cow horns
Adjustable cow horns
Load lifting magnet
Load lifting magnet
Vacuum suspension
Vacuum suspension

Accessories

Set-down trestle
Set-down trestle
Stainless steel
Stainless steel
Galvanised
Galvanised
Optimised height
Optimised height
